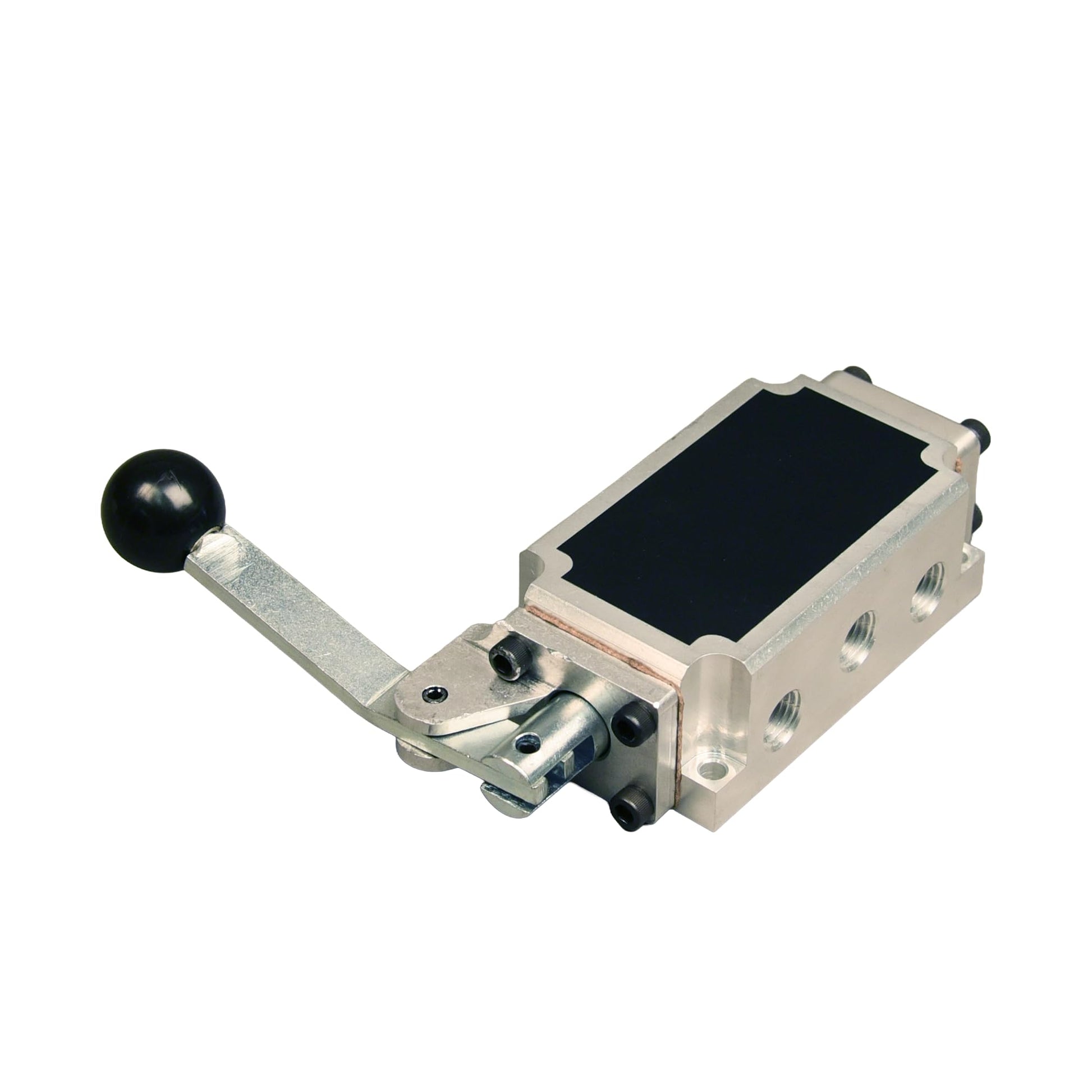

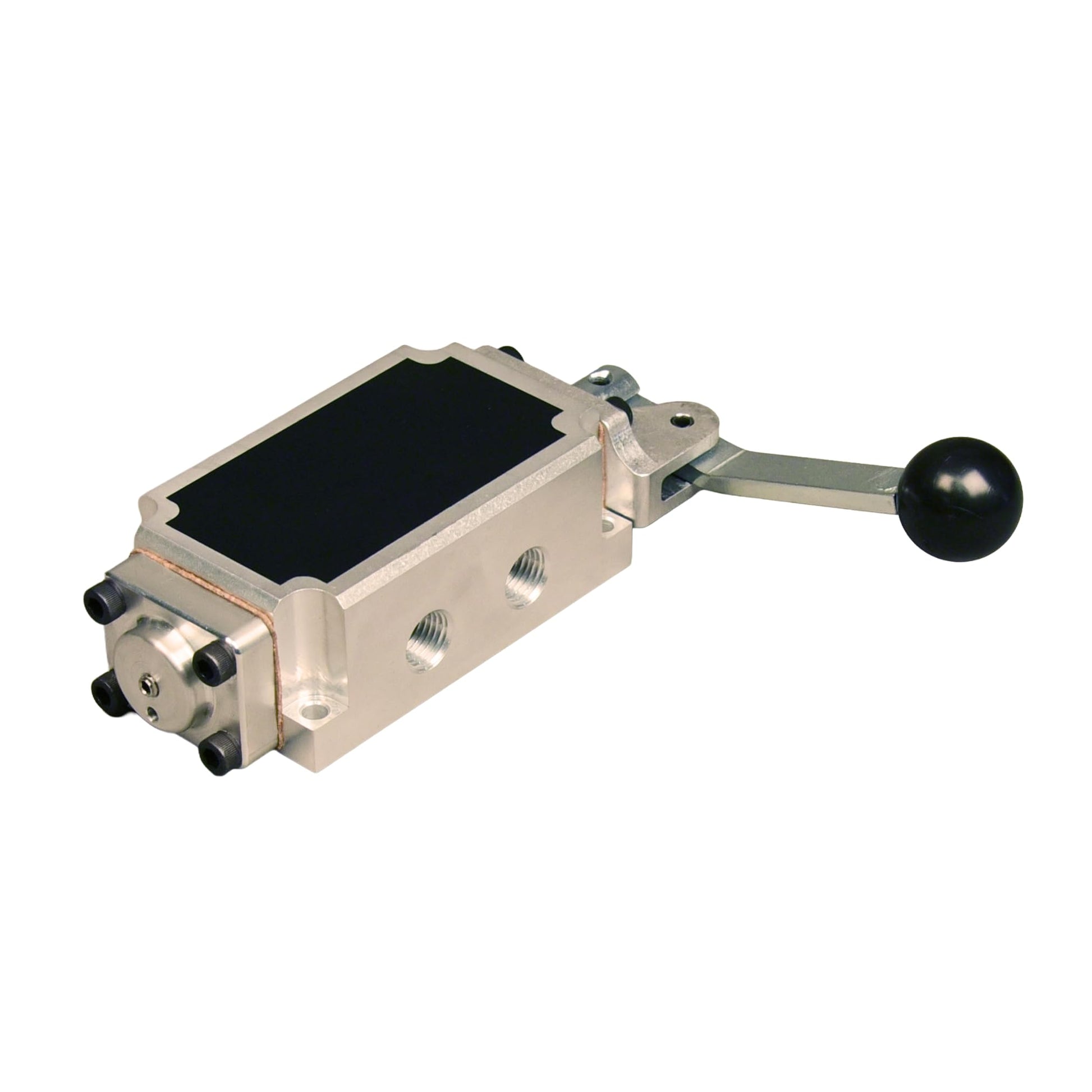

Control Valve — for Coats® and Some Baseline Tire Changers Models — SVI # BW-1255-85 — Ref # 185585, 442VC, 8185585

Brand: SVI Inc

Features:

• DESIGNED FOR ROBO ARM SYSTEMS Compatible with Coats APX80/APX90 models and select Baseline tire changers.
• 4-WAY, 5-PORT, 3-POSITION VALVE Provides precise airflow control with a closed port spring return center position.
• MANUAL LEVER OPERATION Features a left-hand 1” ball-end lever for smooth, accurate control during use.
• DURABLE PNEUMATIC DESIGN Built with nitrile seals (optional Viton or HNBR) for long-lasting performance.
• VERSATILE APPLICATIONS Suitable for tire changers, air cylinders, material handling systems, and more.

model number: BW-1255-85

Part Number: BW-1255-85

Package Dimensions: 7.0 x 5.0 x 2.0 inches
