Quaintfab -TR-03 Manual flat bar Roller,Square and Rectangular Tube Bender,Tube Roller

Brand: Quaintfab

Features:

• Powered by hand and bench mounted operation, the tube bender can handle flat bar (mild steel) up to 2'x1/4' or 1-1/2' square tubes with a thickness 0f 1/16'.
• The flat bar can be curved gently for decorative applications
• Maximum Center Distance Of Lower Roller: 18 7/8' (480mm)
• Minimum Center Distance of Lower Roller: 12.2' (310mm)
• The bender can process materials such as steel, cuprum and aluminum
• The TR-03 tubing bender is specifically designed to deal with square and rectangular tube bending process. It is also built for rolling box section and flat bar into curves or completing circles.

model number: 7170050

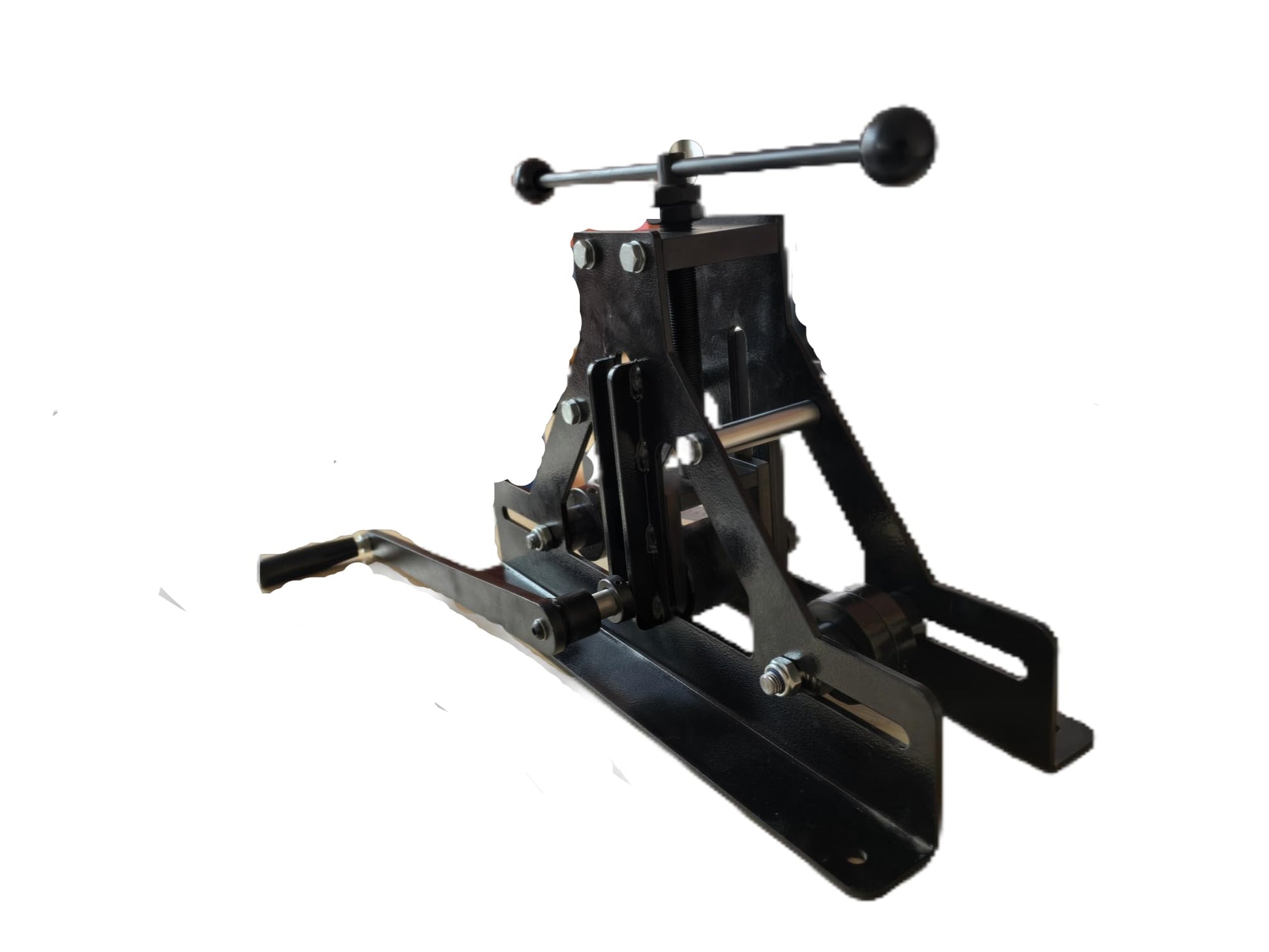

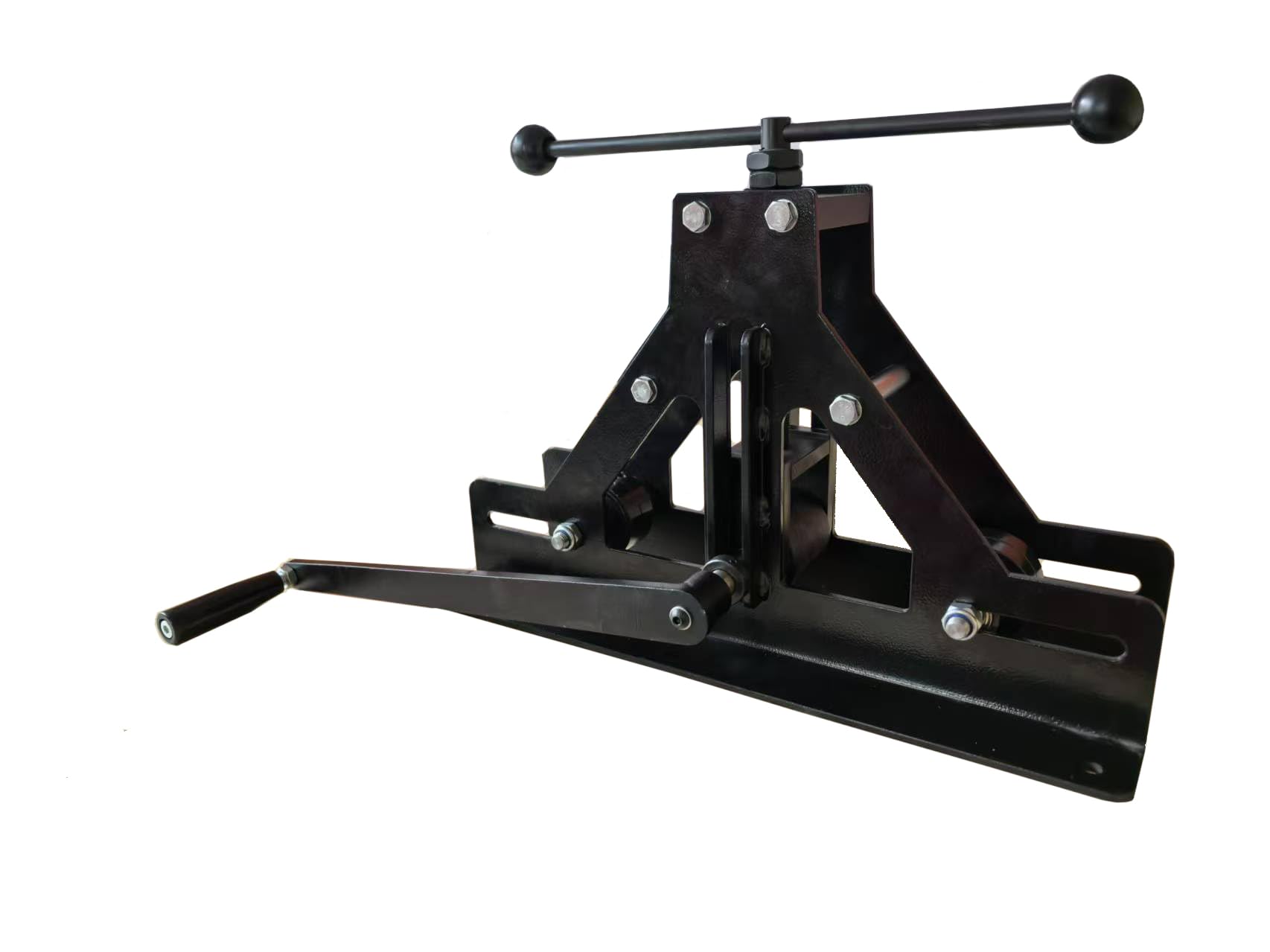

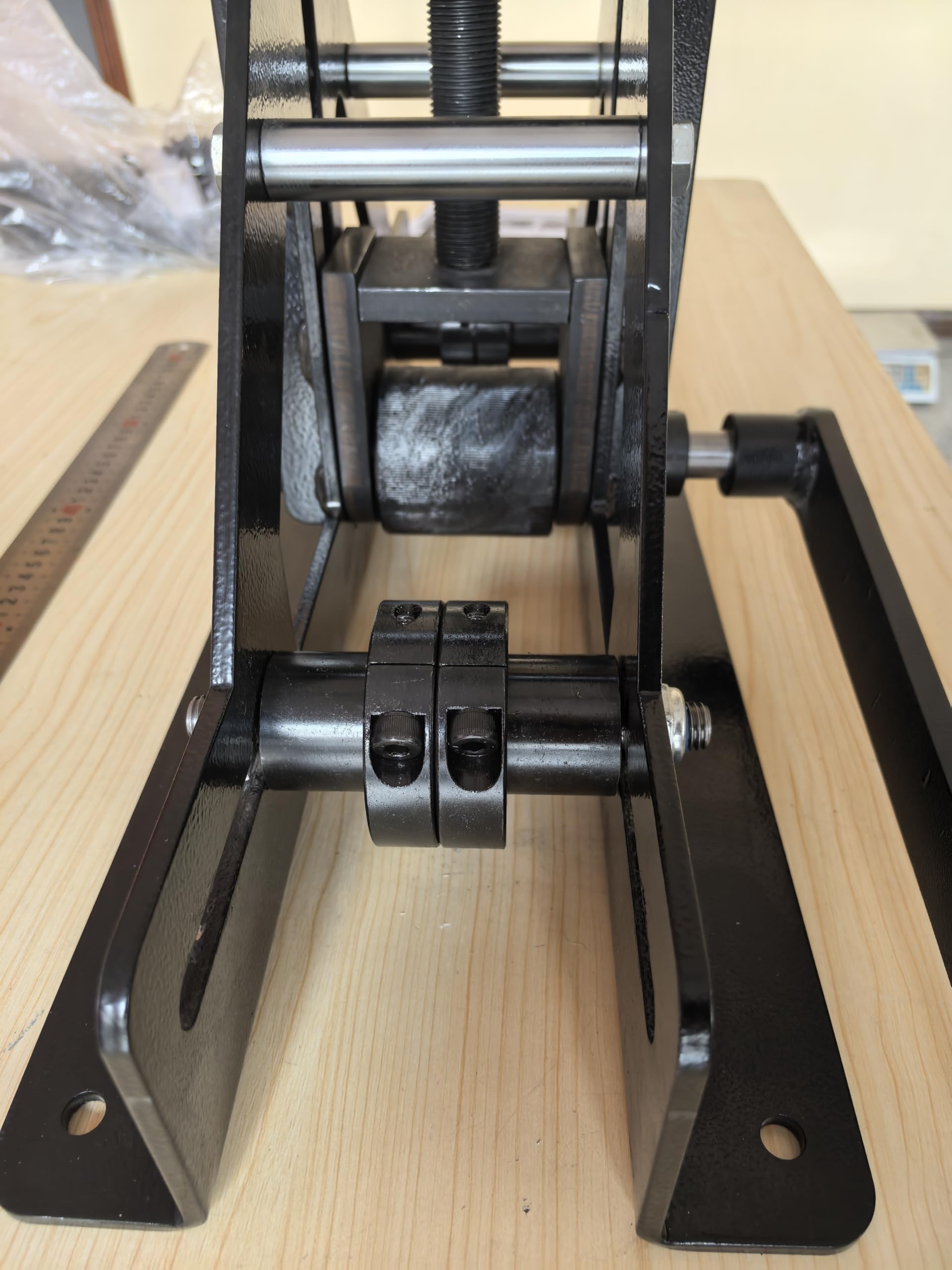

Details: This manual roll bender is capable of rolling tube, pipe, flats, and various box tubing. The unit's relatively small size makes it highly portable and versatile. Top roll position is adjusted by means of a lever handle and the lower rolls are fixed. Bottom rolls can be dropped in quickly

Package Dimensions: 20.9 x 18.6 x 11.0 inches
