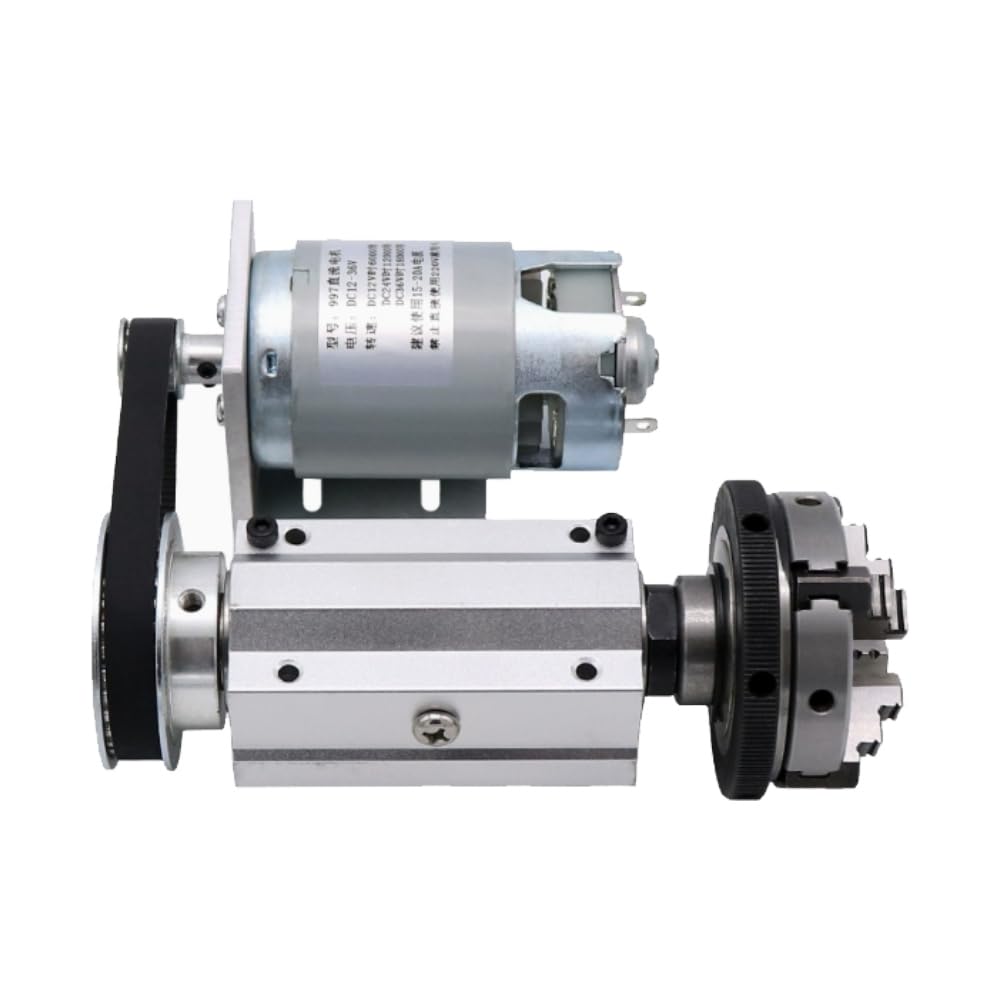

RATTMMOTOR No powered Multi-function Lathe chuck spindle assemblies 895 Motor Rotary Lathe Woodworking Spindle Motor Chuck 63mm for CNC Lathe Grinder machine Table Saw (4 Jaw 63mm)

Brand: RATTMMOTOR

Color: Silver

Features:

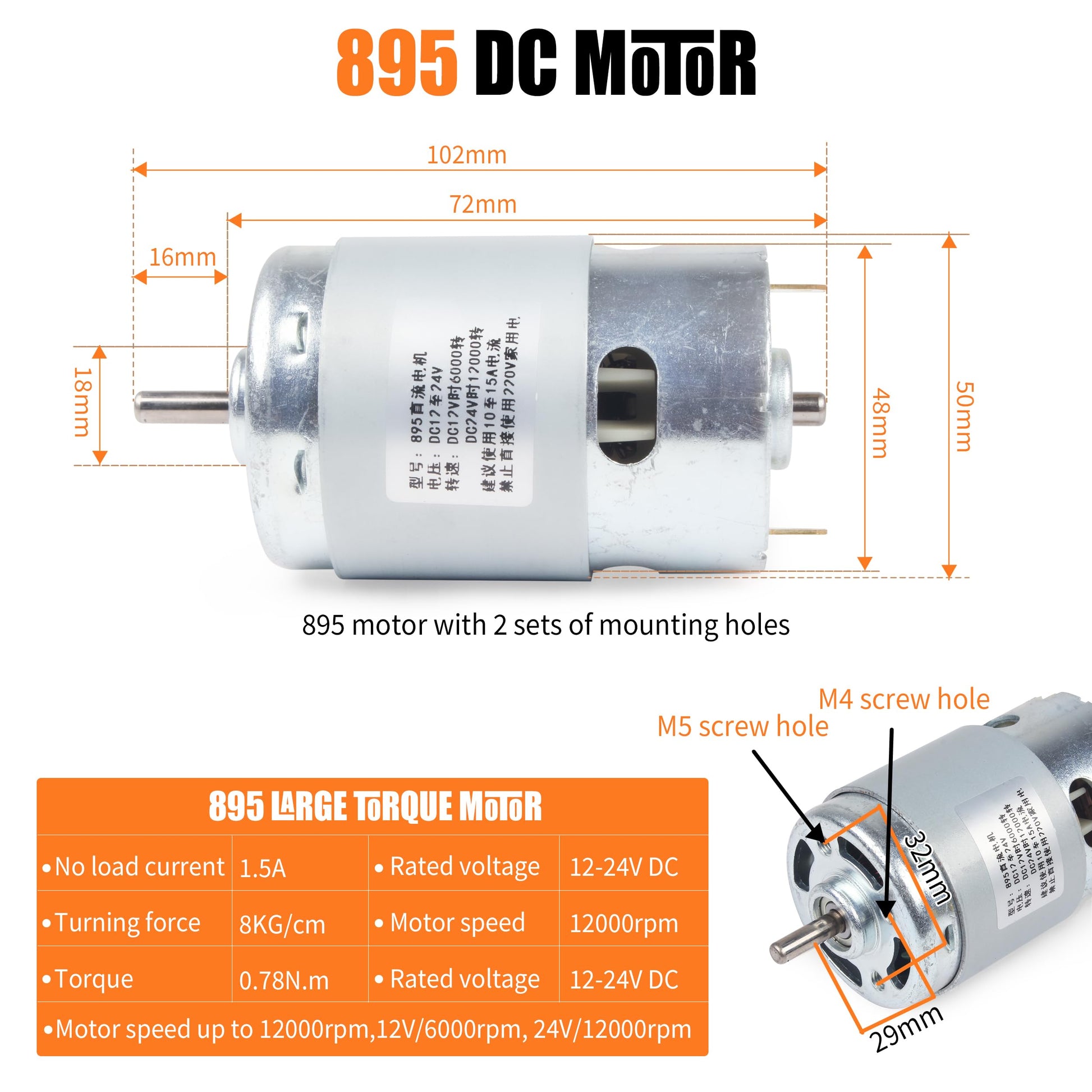

• 【6000-12000RPM】No-load current 1.5A, turning force: 8KG/cm, torque: 0.78N.m, rated voltage 12-24V DC, motor speed up to 12000rpm, 12V/6000rpm, 24V/12000rpm, , supports forward and reverse, high speed, strong momentum.

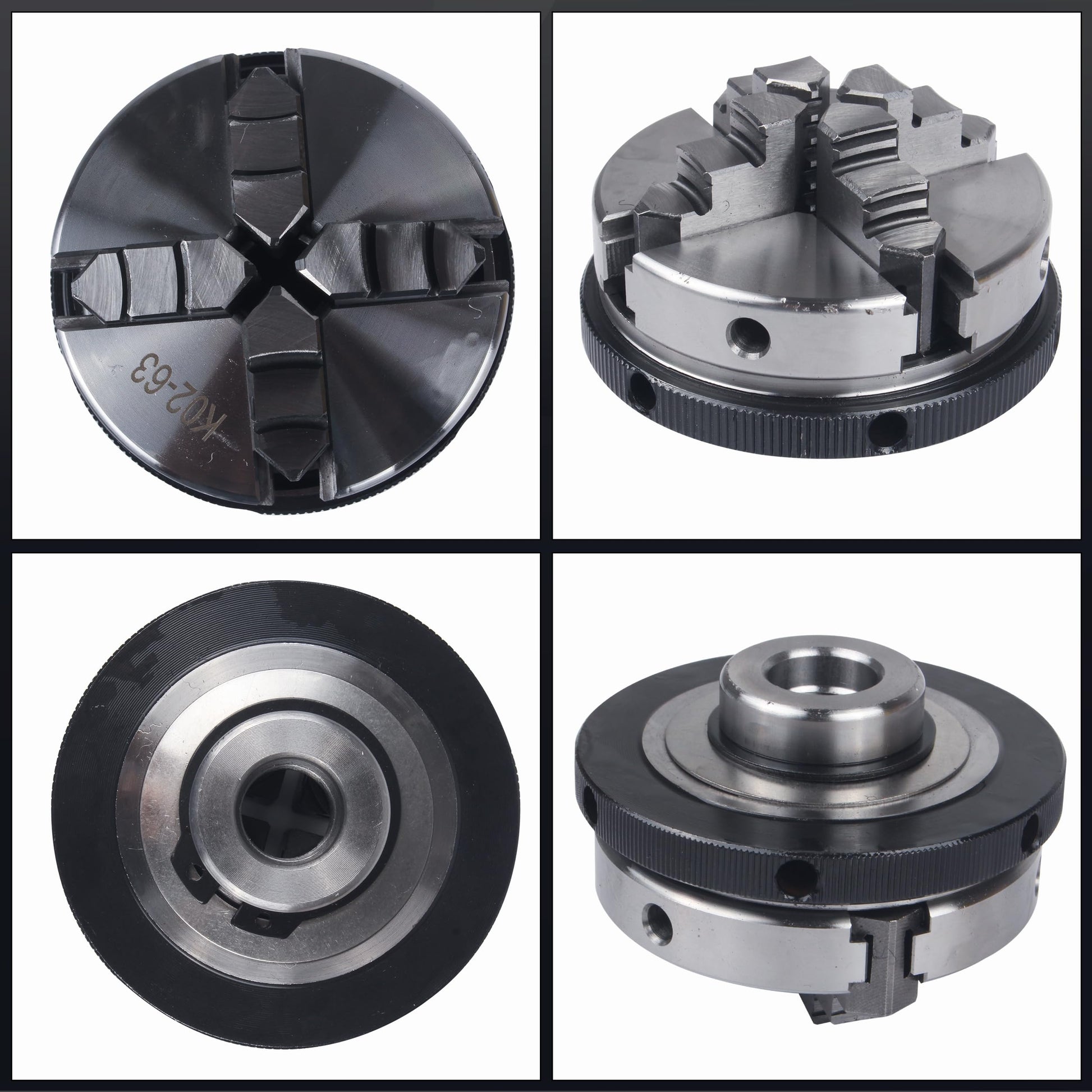

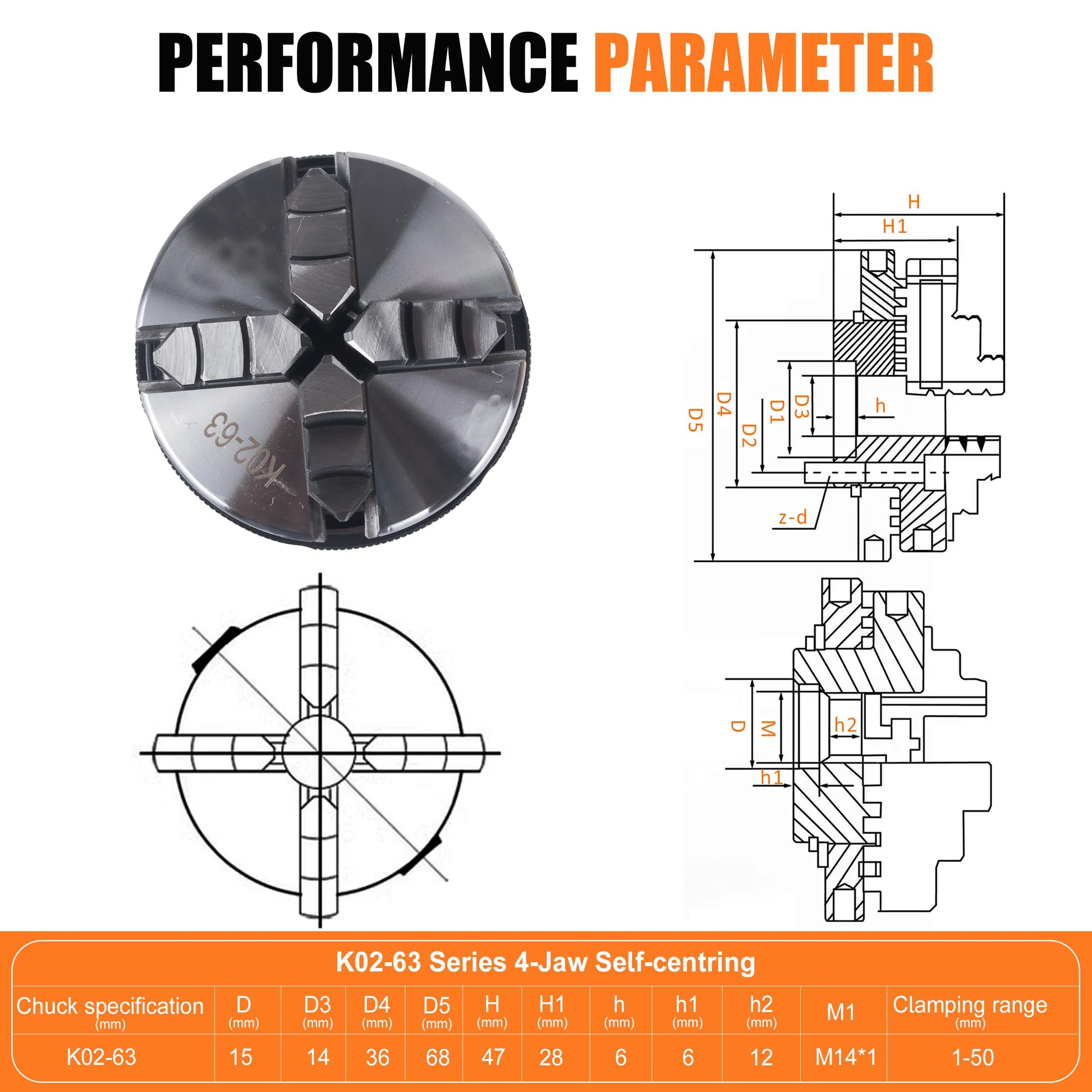

• 【K02-63mm Self-centering Chuck】Jaw: 4 Jaw; Internal jaw clamping: 1-50mm; External jaw clamping: 16-50mm; Connection form: threaded connection, threaded port size: M14.

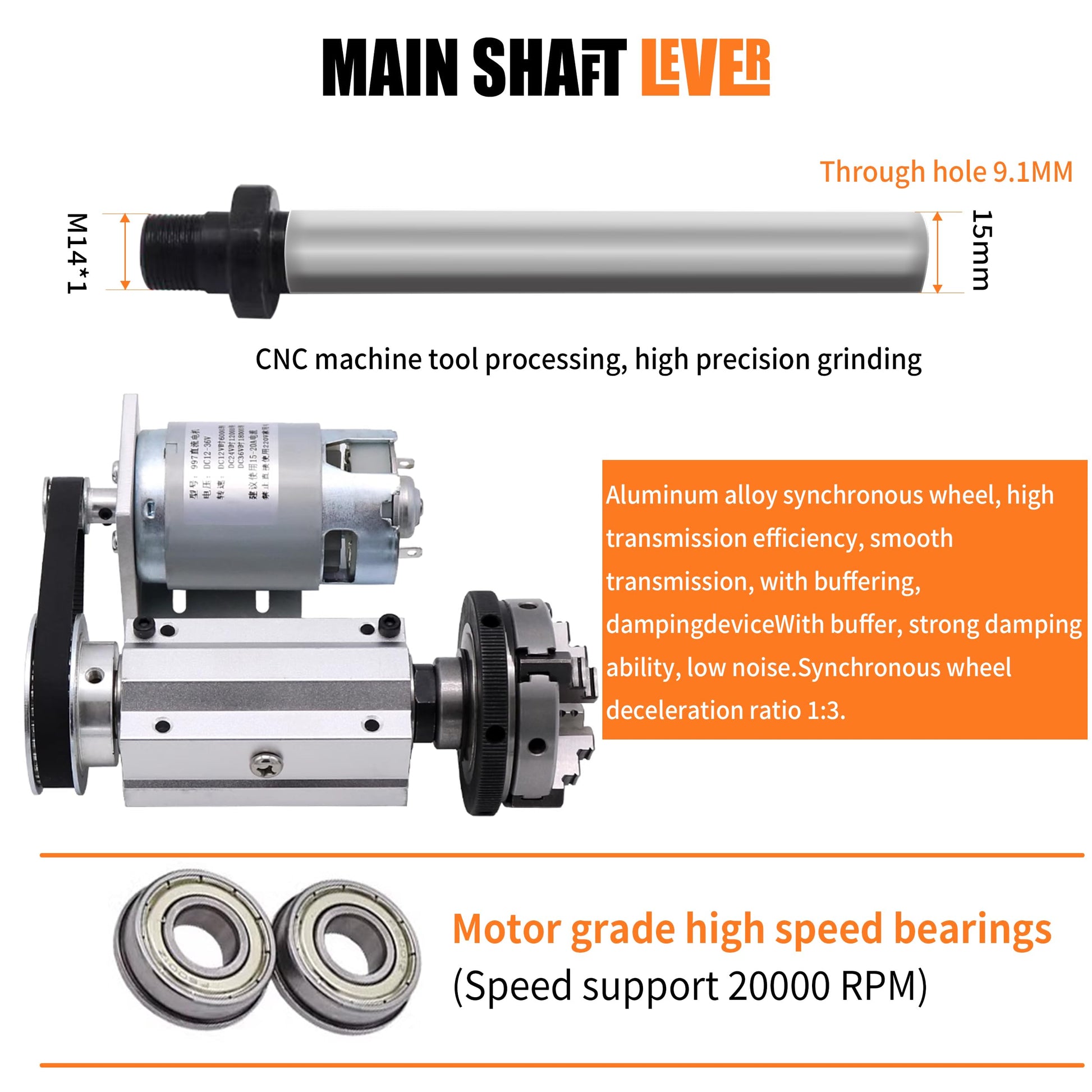

• 【XL10 teeth 5mm + XL30 teeth 15mm motor synchronous wheel】Aluminium alloy synchronous wheel, high transmission efficiency, and smooth transmission, with buffer, vibration damping capacity, low noise. Synchronous wheel reduction ratio 1:3.
• 【110XL belt】Circumference 279.44mm, number of teeth 55, transmission speed ratio range, compact structure suitable for multi-axis transmission, without lubrication; belt selection of high quality materials, anti-wear.

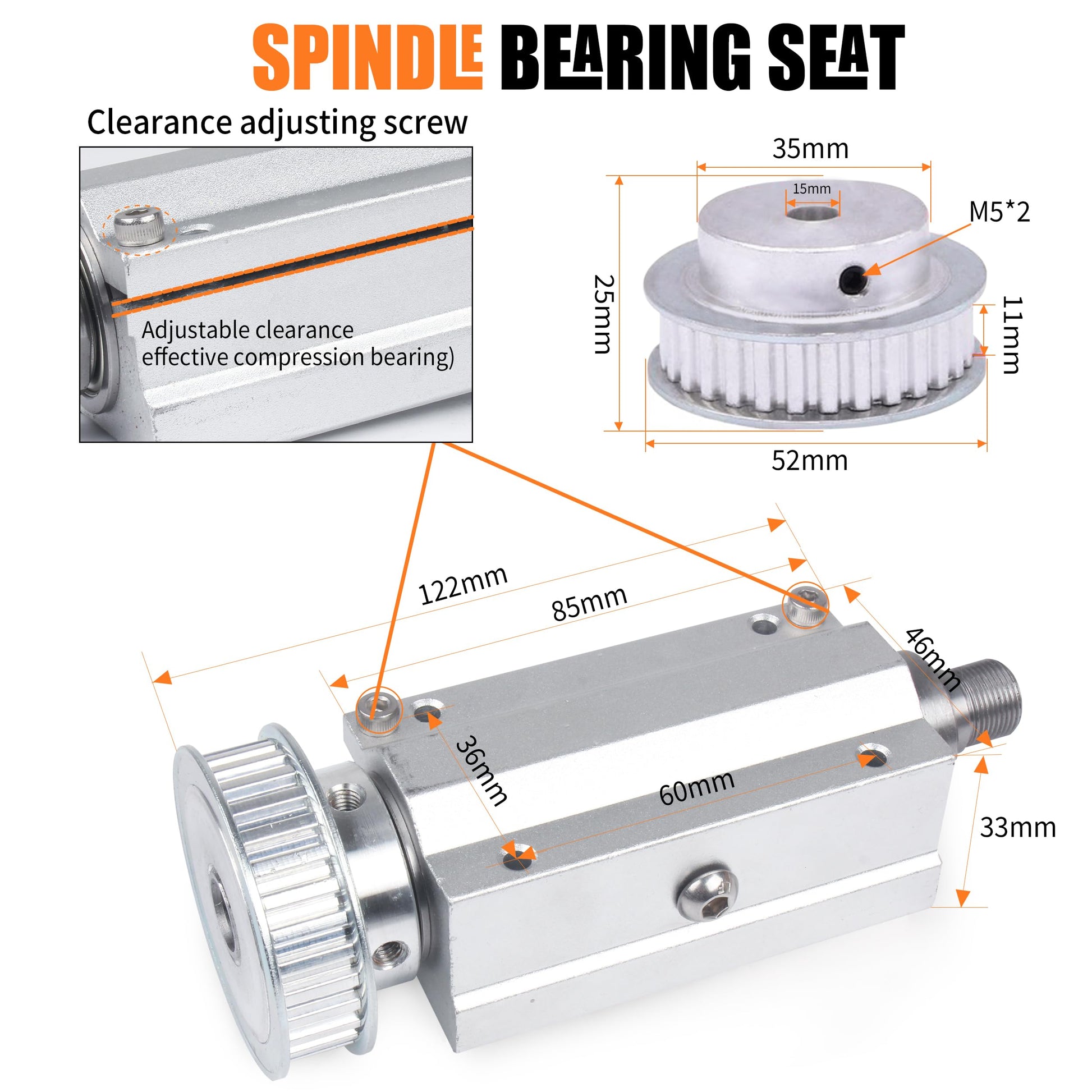

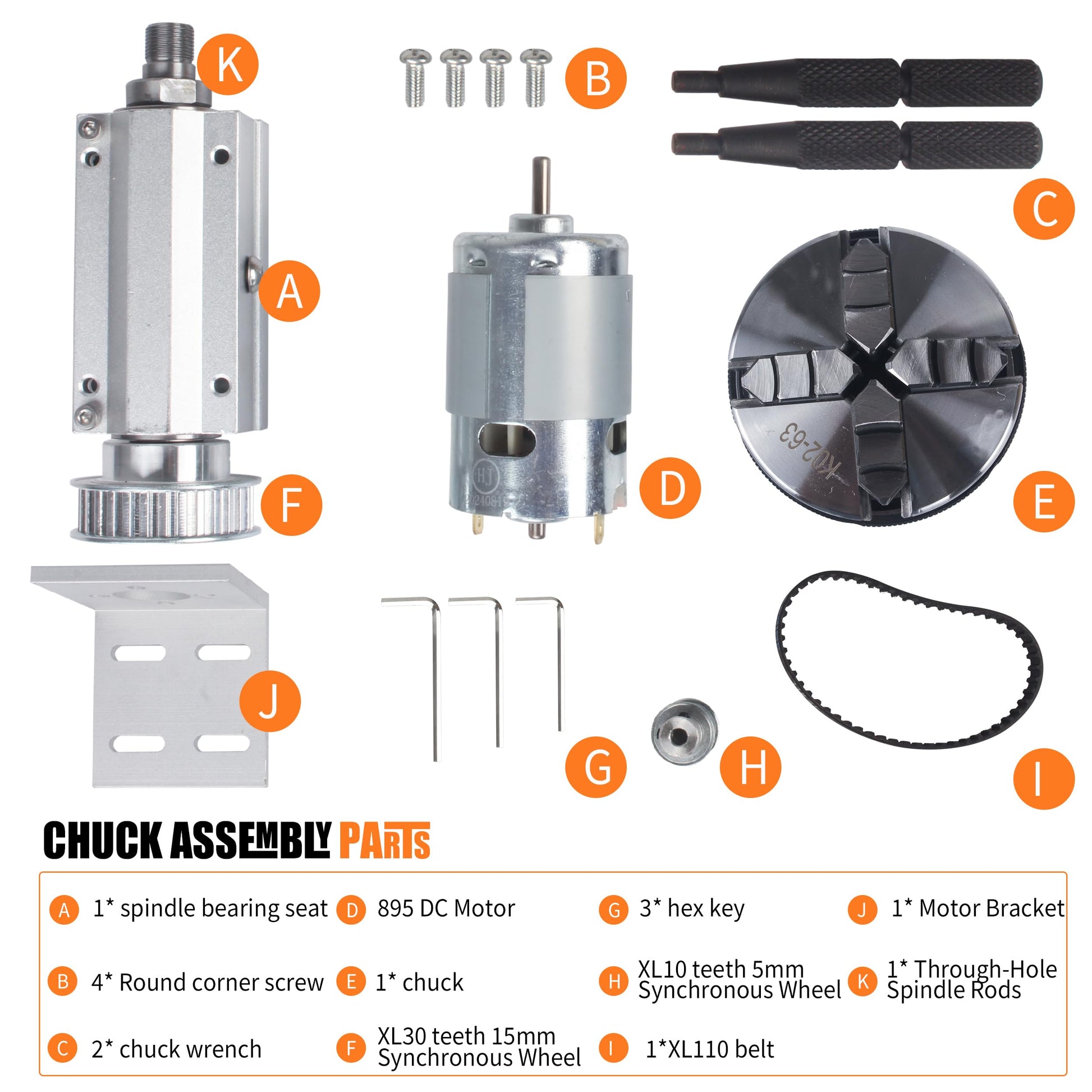

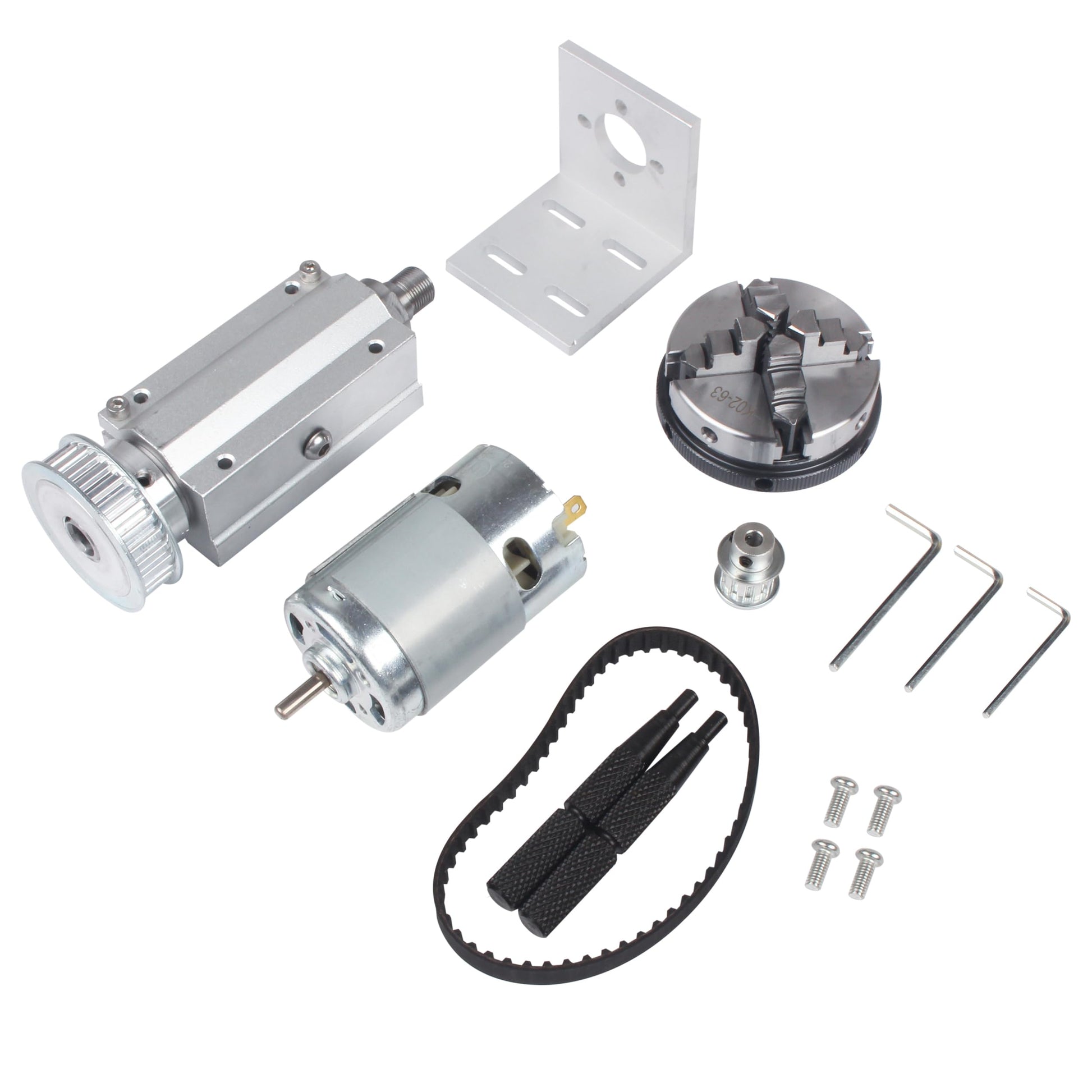

• 【Chuck Assembly Parts Overview】1*Chuck; 2*Chuck spanner; 1*Through-hole spindle rod; 1*Spindle bearing housing; 1*XL10 tooth 5mm synchro wheel; 1*XL30 tooth synchro wheel; 1*XL110 belt; 3*Inner 6-angle spanner.

model number: XIAOJ-63mm

Package Dimensions: 7.9 x 5.1 x 4.1 inches
