VISOSCI High Speed Lab Homogenizer 2000–20000rpm, Digital Disperser Emulsifier, 20–1200mL, Max 5000mPa·s (Low–Medium Viscosity Only), Auto Overload Protection，2 Dispersing Heads

Brand: VISOSCI

Features:

• High-Speed Homogenization Performance：Designed for laboratory liquid processing with adjustable speed from 2000 to 20000 rpm. Suitable for emulsification, dispersion, and homogenization of low to medium viscosity samples.
• Clear Application Range (Avoid Misuse)： Works best with liquid or semi-liquid samples (≤5000 mPa·s, similar to honey or thinner). ❗ Not suitable for thick paste, gel, resin, or high-viscosity materials
• Auto Protection is Normal Behavior： Built-in motor protection system automatically stops the machine when:viscosity is too high / load is excessive / speed increases too quickly 👉 This is normal protective behavior, not a defect
• Note: The front panel is updated to light green, all other parts is not updated and the function is completely the same. We will update the picture soon. Thanks for your understanding.
• Proper Operation Required For best results: Start at low speed and increase gradually Ensure sample viscosity is within range Avoid continuous high-load operation 👉 Proper use ensures stable performance and longer motor life

Part Number: TH200D

Details: High-Speed Laboratory Homogenizer for Liquid Processing

The VISOSCI homogenizer is designed for efficient mixing, dispersion, and emulsification of low to medium viscosity samples in laboratory environments. With adjustable speed up to 20,000 rpm, it delivers strong shear force for uniform and stable results.

Designed for Proper Application
Suitable for: liquids, solutions, soft suspensions
Max viscosity: ≤ 5000 mPa·s (similar to honey)
❗ Not suitable for thick paste, gel, or highly viscous materials

Auto Protection (Normal Function)

The machine will automatically stop when:
viscosity is too high
load is excessive
speed increases too quickly

👉 This is a built-in protection system, not a defect

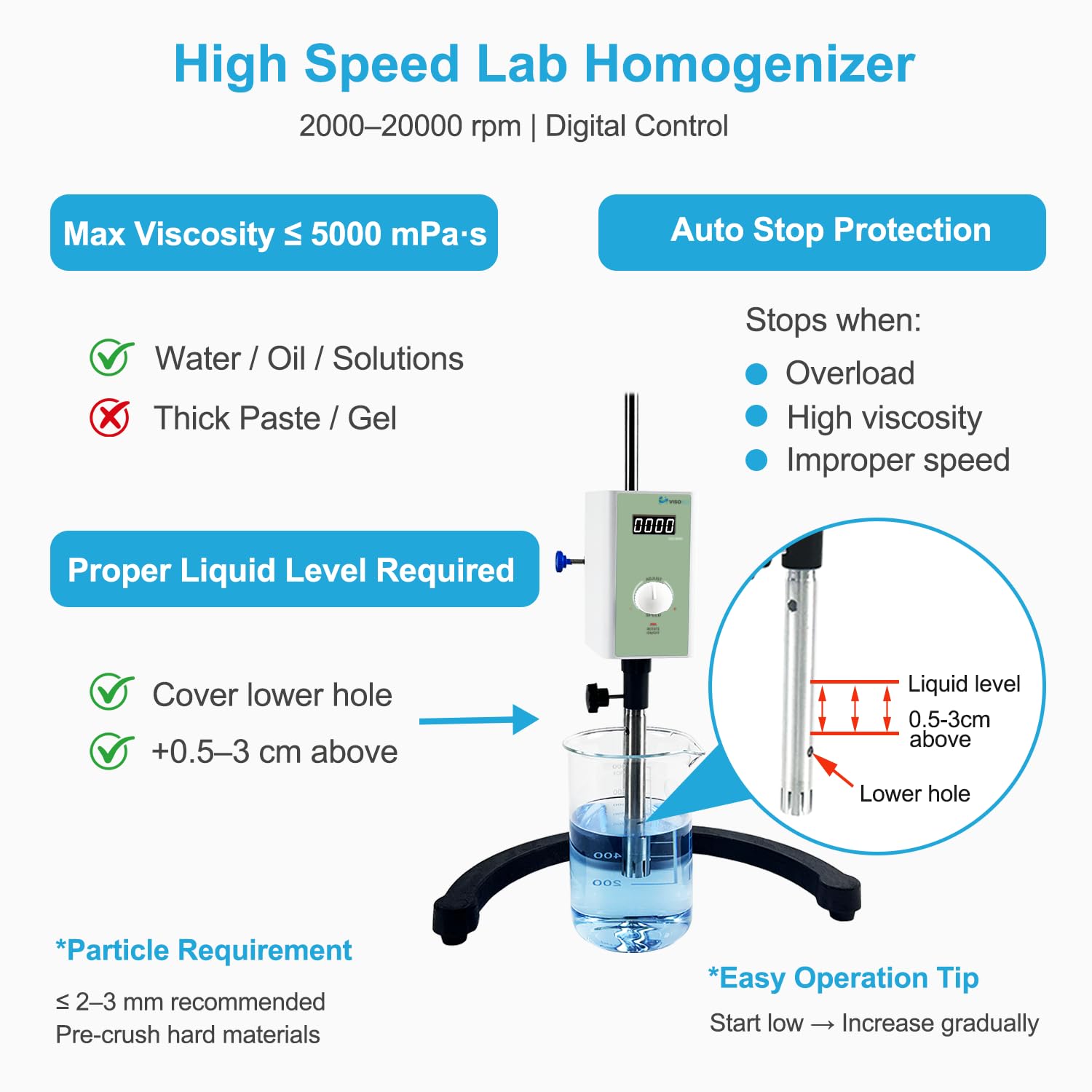

Important Usage Requirements
Liquid must cover the lower hole of the dispersing head
Recommended level: 0.5–3 cm above the lower hole
Recommended particle size: ≤ 2–3 mm
Start at low speed and increase gradually

Dual Stainless Steel Work Heads

Includes 12 mm and 18 mm heads for different sample volumes (20–1200 mL), providing flexibility and efficient homogenization.

For Laboratory Use Only

Proper operation ensures stable performance and longer service life.

Package Dimensions: 18.7 x 13.1 x 6.3 inches
